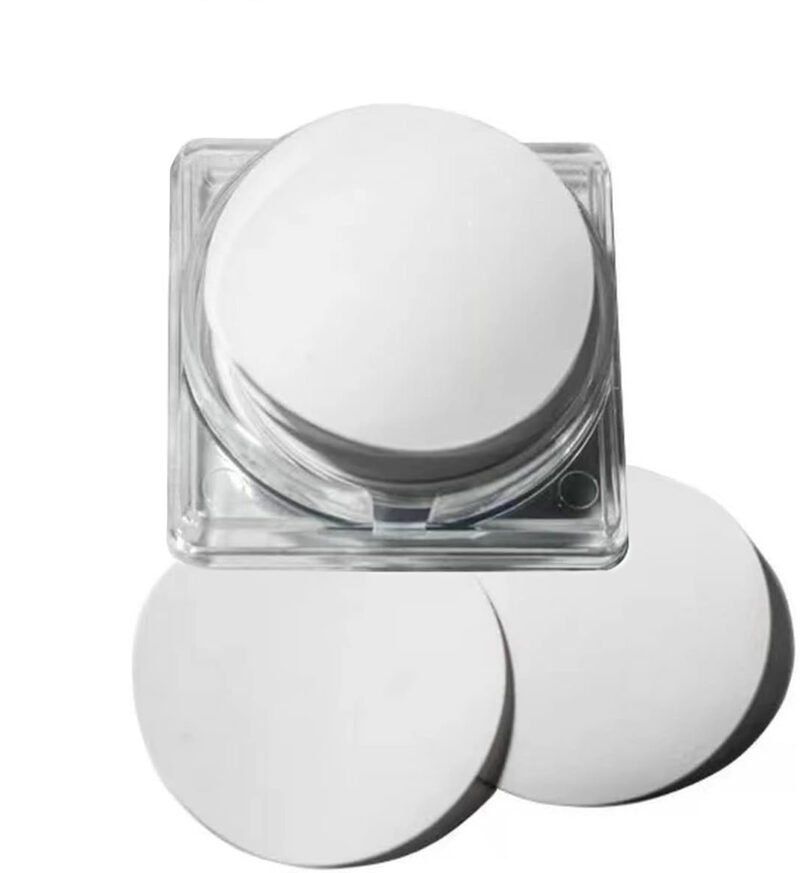

Description of Nylon Membrane Filter
The nylon membrane filter, also known as nylon66, offers excellent chemical compatibility, making it widely used in the chemical industry. It is ideal for filtering high-pH samples and is primarily employed for aqueous biological solutions, alcoholic solutions, and non-aqueous HPLC/GC solvents.
Advantages of Nylon Membrane Filters
Chemical Compatibility: Nylon membrane filters are compatible with a broad range of solvents, acids, bases, and organic compounds, making them ideal for various analytical and filtration processes.
Wide Pore Size Range: Available in diverse pore sizes, from sub-micron to larger sizes, enabling filtration of particles and biomolecules of varying dimensions.
Mechanical Strength: These filters are robust and possess high mechanical strength, suitable for both aqueous and non-aqueous filtration, including applications under pressure.
Hydrophilic Nature: Inherently hydrophilic, nylon membranes have a strong affinity for water and aqueous solutions, ensuring rapid wetting and efficient flow rates during filtration.
Low Protein Binding: Nylon membranes have low protein binding characteristics, making them appropriate for protein and enzyme filtration with minimal biomolecule loss or adsorption.
Heat Resistance: Capable of withstanding moderate temperatures, nylon membrane filters support autoclaving and sterilization without degrading, ideal for sterile filtration.
Inertness: These filters are inert and non-reactive, ensuring minimal interference with sample components and analytes during filtration processes.
Features of Nylon Membrane Filters
- Suitable for filtering aqueous biological samples.
- Effective for alcoholic solutions.
- High filtration speed.
- Flexible sales policy, accepting small orders.
- Comparable to Whatman nylon membrane.
- Hydrophilic membrane filter.
| Filter Media | Hydrophilic Nylon | ||
|---|---|---|---|
| Pore Size | 0.1 μm, 0.22 μm, 0.45 μm, 0.8 μm, 1.0 μm, 3.0 μm, 5.0 μm, 10 μm | ||
| Diameter | 13 mm, 25 mm, 47 mm, 90 mm, 142 mm, 293 mm | ||
| Bubble Point | ≧0.31MPa(0.22 μm) | ≧0.17MPa(0.45 μm) | |
| Flow Rate@23 °C, H2O | ≥ 4mL/min/cm2@1 bar(0.22 μm) | ≥ 16mL/min/cm2@1 bar(0.45 μm) | |
| Thickness | 90 – 140 μm | ||
| pH Range | 6 – 13 | ||
| Chemical compatibility | Aqueous, organic solvent, and mixed solvent | ||
| Maximum Operating Pressure | 4.2 bar@23 °C | 1.5 bar@85 °C | |
| Item Code | Pore Size(μm) | Diameter(mm) | Sterile | Quantity/pk |
|---|---|---|---|---|
| HKR13010 | 0.10 | 13 | No | 400pcs |
| HKR25010 | 0.10 | 25 | No | 400pcs |
| HKR47010 | 0.10 | 47 | No | 100pcs |
| HKR50010 | 0.10 | 50 | No | 100pcs |
| HKR60010 | 0.10 | 60 | No | 100pcs |
| HKR90010 | 0.10 | 90 | No | 50pcs |
| HKR142010 | 0.10 | 142 | No | 50pcs |
| HKR150010 | 0.10 | 150 | No | 50pcs |
| HKR200010 | 0.10 | 200 | No | 50pcs |
| HKR293010 | 0.10 | 293 | No | 50pcs |
| HKR300010 | 0.10 | 300 | No | 50pcs |
| HKR13022 | 0.22 | 13 | No | 400pcs |
| HKR25022 | 0.22 | 25 | No | 400pcs |
| HKR47022 | 0.22 | 47 | No | 100pcs |
| HKR50022 | 0.22 | 50 | No | 100pcs |
| HKR60022 | 0.22 | 60 | No | 100pcs |
| HKR90022 | 0.22 | 90 | No | 50pcs |
| HKR142022 | 0.22 | 142 | No | 50pcs |
| HKR150022 | 0.22 | 150 | No | 50pcs |
| HKR200022 | 0.22 | 200 | No | 50pcs |
| HKR293022 | 0.22 | 293 | No | 50pcs |
| HKR300022 | 0.22 | 300 | No | 50pcs |
| HKR13045 | 0.45 | 13 | No | 400pcs |
| HKR25045 | 0.45 | 25 | No | 400pcs |
| HKR47045 | 0.45 | 47 | No | 100pcs |
| HKR50045 | 0.45 | 50 | No | 100pcs |
| HKR60045 | 0.45 | 60 | No | 100pcs |
| HKR90045 | 0.45 | 90 | No | 50pcs |
| HKR142045 | 0.45 | 142 | No | 50pcs |
| HKR150045 | 0.45 | 150 | No | 50pcs |
| HKR200045 | 0.45 | 200 | No | 50pcs |
| HKR293045 | 0.45 | 293 | No | 50pcs |
| HKR300045 | 0.45 | 300 | No | 50pcs |
| HKR13080 | 0.80 | 13 | No | 400pcs |
| HKR25080 | 0.80 | 25 | No | 400pcs |
| HKR47080 | 0.80 | 47 | No | 100pcs |
| HKR50080 | 0.80 | 50 | No | 100pcs |
| HKR60080 | 0.80 | 60 | No | 100pcs |
| HKR90080 | 0.80 | 90 | No | 50pcs |
| HKR142080 | 0.80 | 142 | No | 50pcs |
| HKR150080 | 0.80 | 150 | No | 50pcs |
| HKR200080 | 0.80 | 200 | No | 50pcs |
| HKR293080 | 0.80 | 293 | No | 50pcs |
| HKR300080 | 0.80 | 300 | No | 50pcs |
| HKR13100 | 1.0 | 13 | No | 400pcs |
| HKR25100 | 1.0 | 25 | No | 400pcs |
| HKR47100 | 1.0 | 47 | No | 100pcs |
| HKR50100 | 1.0 | 50 | No | 100pcs |
| HKR60100 | 1.0 | 60 | No | 100pcs |
| HKR90100 | 1.0 | 90 | No | 50pcs |
| HKR142100 | 1.0 | 142 | No | 50pcs |
| HKR150100 | 1.0 | 150 | No | 50pcs |
| HKR200100 | 1.0 | 200 | No | 50pcs |
| HKR293100 | 1.0 | 293 | No | 50pcs |
| HKR300100 | 1.0 | 300 | No | 50pcs |
| HKR13300 | 3.0 | 13 | No | 400pcs |
| HKR25300 | 3.0 | 25 | No | 400pcs |
| HKR47300 | 3.0 | 47 | No | 100pcs |
| HKR50300 | 3.0 | 50 | No | 100pcs |
| HKR60300 | 3.0 | 60 | No | 100pcs |
| HKR90300 | 3.0 | 90 | No | 50pcs |
| HKR142300 | 3.0 | 142 | No | 50pcs |
| HKR150300 | 3.0 | 150 | No | 50pcs |
| HKR200300 | 3.0 | 200 | No | 50pcs |
| HKR293300 | 3.0 | 293 | No | 50pcs |
| HKR300300 | 3.0 | 300 | No | 50pcs |
| HKR13500 | 5.0 | 13 | No | 400pcs |
| HKR25500 | 5.0 | 25 | No | 400pcs |
| HKR47500 | 5.0 | 47 | No | 100pcs |
| HKR50500 | 5.0 | 50 | No | 100pcs |
| HKR60500 | 5.0 | 60 | No | 100pcs |
| HKR90500 | 5.0 | 90 | No | 50pcs |
| HKR142500 | 5.0 | 142 | No | 50pcs |
| HKR150500 | 5.0 | 150 | No | 50pcs |
| HKR200500 | 5.0 | 200 | No | 50pcs |
| HKR293500 | 5.0 | 293 | No | 50pcs |
| HKR300500 | 5.0 | 300 | No | 50pcs |
| HKR131000 | 10.0 | 13 | No | 400pcs |
| HKR251000 | 10.0 | 25 | No | 400pcs |
| HKR471000 | 10.0 | 47 | No | 100pcs |
| HKR501000 | 10.0 | 50 | No | 100pcs |
| HKR601000 | 10.0 | 60 | No | 100pcs |
| HKR901000 | 10.0 | 90 | No | 50pcs |
| HKR1421000 | 10.0 | 142 | No | 50pcs |
| HKR1501000 | 10.0 | 150 | No | 50pcs |
| HKR2001000 | 10.0 | 200 | No | 50pcs |
| HKR2931000 | 10.0 | 293 | No | 50pcs |
| HKR3001000 | 10.0 | 300 | No | 50pcs |
